LA2-S | Photoelectric Sensors | Senpum
LA2-S | Photoelectric Sensors | Senpum
Senpum

LA2-S

Photoelectric Sensors

Codice prodotto: LA2-S

Richiedi preventivo

LA2-S | Photoelectric Sensors | Senpum

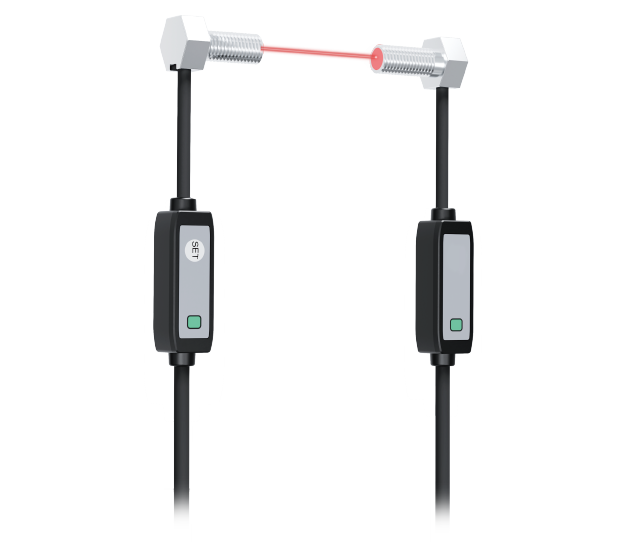

The LA2-S Series from Senpum includes ultra-compact through-beam laser sensors designed for non-contact detection of small objects in industrial automation applications.

The M6 threaded body allows direct mounting and facilitates installation even in confined spaces.

The range allows for detecting objects with minimum dimensions down to 0.5 mm and includes versions with detection distances of 500 mm, 1000 mm, and up to 10 m, depending on the model.

Senpum suggests applications such as part passage detection, integrated circuit pin inspection, and screw presence or absence verification.

LA2-S Series Ultra-Compact Lase…

Available with NPN or PNP output and Dark-ON or Light-ON modes, LA2-S sensors are powered by 12–24 V DC and offer a maximum response time of 1 ms.

The stainless steel body and IP64 protection rating support their use within industrial automation machinery and systems.

Discover our range of photocells!

... leggi tutto

Caratteristiche principali

Type
Ultra-compact through-beam laser sensor
Detection Principle
Through-beam
Detection distance
500 mm / 1000 mm / 10 m, depending on model
Minimum detectable object size
Up to Ø 0.5 mm, depending on model
Body Thread
M6 × P0.75
Operating Mode
Dark-ON / Light-ON
Output
NPN / PNP, depending on the model
Response Time
Max. 1 ms
Power Supply
12–24 V DC
Current Consumption
≤ 30 mA
Control Output Current
Max. 100 mA
Protection rating
IP64
Operating temperature
-10–+55 °C
Relative Humidity
35–85% RH, non-condensing
Material
PC, sensor resin / stainless steel
Cable Length
1 m

Datasheet

datasheet-la2-s-senpum.pdf
